LORA 0‑100M LCD Screen IP66 Level transmitter For Water Supply Container Measurement

Name: LORA 0100M LCD Screen IP66 Level transmitter For Water Supply Container Measurement
Brand: TOPRIE
Price: 195.00 USD

Buy cheap LORA 0‑100M LCD Screen IP66 Level transmitter For Water Supply Container Measurement product

Supply Ability : 100 pieces per day

Protection level : IP66

Model Number : TP2403

Accuracy : 0.5%F.S

MOQ : 1 piece

Delivery Time : 5-8 workdays

Protocol : MQTT,TCP/IP, Private protocol

Battery capacity : 17000mAh non rechargeable battery

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Uploaded information : Water level,temperature,battery pecent, signal,sim card information

Price : USD195.00~USD 225.00

Configuration : USB

Certification : CE,ROHS

Unit : m

Brand Name : TOPRIE

Range : 0-50m

Place of Origin : China

Communication : WIFI

Packaging Details : Packed in paper carton

Contact Now

LORA 0‑100M LCD Screen IP66 Level transmitter For Water Supply Container Measurement

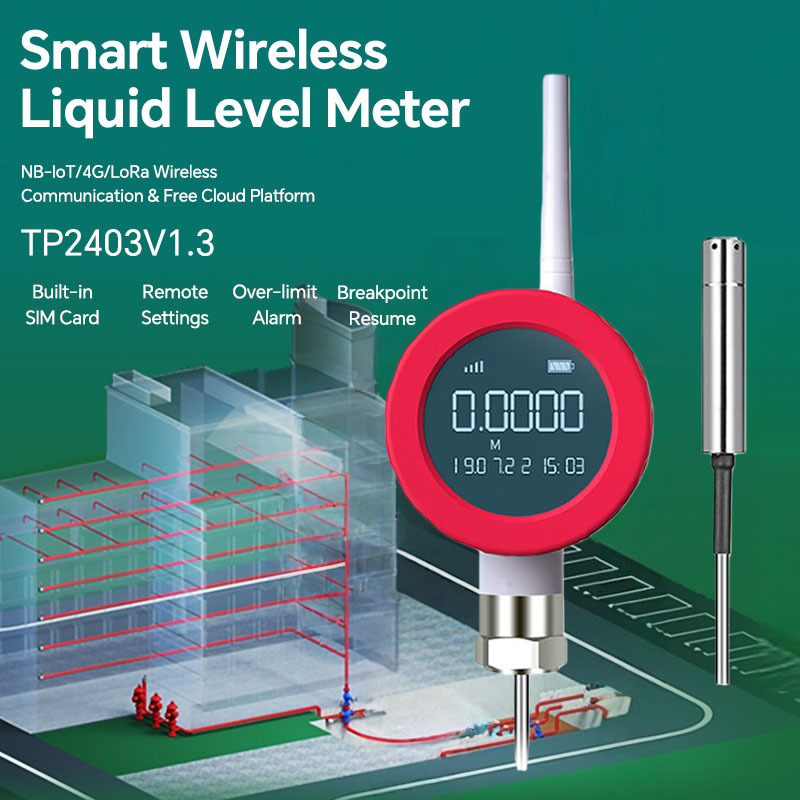

Designed for smart liquid level monitoring, the TP2403 Wireless Waterproof Level Gauge delivers accurate measurements and reliable remote data transmission. It supports NB-IoT, 4G, and LoRa communication and offers a measuring range of up to 0–100 m with 0.5% FS accuracy. Low-power operation, breakpoint data transmission, a 2.4-inch LCD, and up to 5 years of battery life make it an excellent choice for modern IoT water monitoring systems.

LORA 0‑100M LCD Screen IP66 Level transmitter For Water Supply Container Measurement

Technical Specifications

Range	0……50m……70m
Accuracy	0.5%F.S
Battery Capacity	17000mAh non rechargeable lithium battery
Protection Level	IP66
Display	TFT
Power Consumption	Standby current ≤80uA, average data transmission current ≤150mA
Communication	4G,WiFi,LoRaWAN,LoRa,NB-IoT
Antenna	External
Installation	Vertical,Horizontal
Sampling Interval Time	10 sec~2550 sec
Uploaded Interval Time	1 Min~1440Mins, the shorter of Uploaded time you setup, the shorter lifetime of battery
Configuration	USB C,Bluetooth
Wake-up Mode	Button,timing
Uploaded Data Information	Liquid level,Temperature, Battery Level, Signal, SIM card
Material	Housing part Aluminum alloy, Sensor part: SS304
Process connection	NPT1/2,M20*1.5,BSP1/2 ect..

Advantages

High Precision Measurement: Accurate to 0.5% Full Scale for reliable readings.
Over Limit Alarm: Alerts you when levels exceed limits.
Long Battery Life: Up to 5 years with hourly data transmission.
TFT LCD Display: Clear 2.4-inch screen for easy viewing.
IP66 Protection: Dustproof and waterproof for outdoor use.

Application

The TP2403 Wireless Waterproof Level Gauge is designed for liquid level monitoring in fire protection, water supply, industrial process, irrigation, and water management systems. It is particularly suitable for remote tanks, reservoirs, and outdoor installations where regular manual inspection or wired connections can be challenging. By providing reliable wireless data transmission and continuous level monitoring, the TP2403 helps users improve operational efficiency, reduce on-site inspections, and manage water resources more effectively.

FAQs

Are you a factory/manufacturer?

Yes, We are professional factory/manufacturer of paperless recorder,humidity and temperature logger,gas detector,wireless smart sensor,sound level meter,liquid level meter, IoT gateway,thermal imaging camera,power quality meter/analyzer ect

What's the main communication method?

We often accord client's requirements to meet their demands. such as GPRS,4G,WIFI,LoRa ect

Can I customized my logo and different communication methods?

Yes,For customized logo that will be okay,but there is a small MOQ.For communication method,please keep us informed in advance.we will prepare a quotation for you quickly as your requirements.

What's the delivery time?

Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your order quantity.

May I know your warranty?

Yes, usually it's 1 year. We can send you detailed warranty document if needed.
